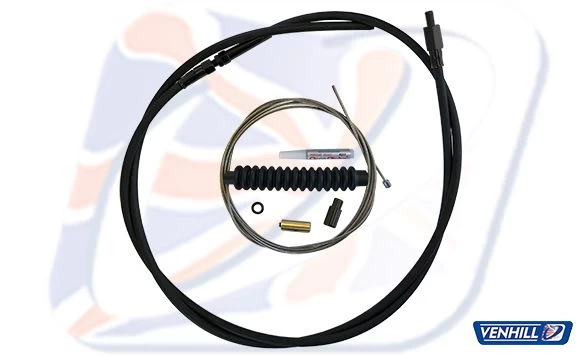

HD CLUTCH CABLE KIT – BLACK

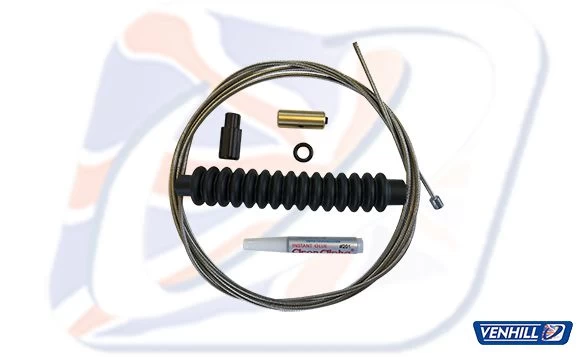

This kit is ‘universal’ and is supplied with cables that are unfinished at one end so that they can be cut to length and all of the connections are designed to fasten securely without the need for soldering.

This clutch cable kit is extra-long, 2080mm (82 inches) and comes in a black PVC coated longitudinal steel outer conduit (9.00mm O.D) and includes end fittings to match the clutch lever.

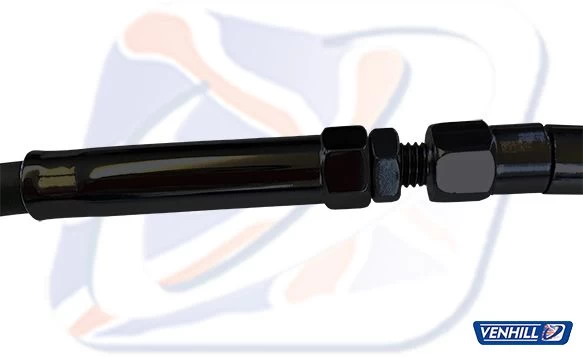

The end fittings provided include a loose stepped ferrule with a body O.D of 12.00mm and a nose O.D of 8.80mm and an attached threaded adjuster which is 5/16^th UNF thread of 12.7mm (1/2 inch) in length.

The wire (2.50mm strand) has a fixed sleeve nipple on one end of 6.2mm (1/4 inch) O.D. and has a loose adjustable barrel nipple of 10.00mm O.D by 19.07mm (3/4 inch) to locate as necessary by securing with the 2.5mm hex grub screw.

This kit is also provided with a small tube of adhesive for bonding the conduit end fittings to the PVC coating.
